Client Background

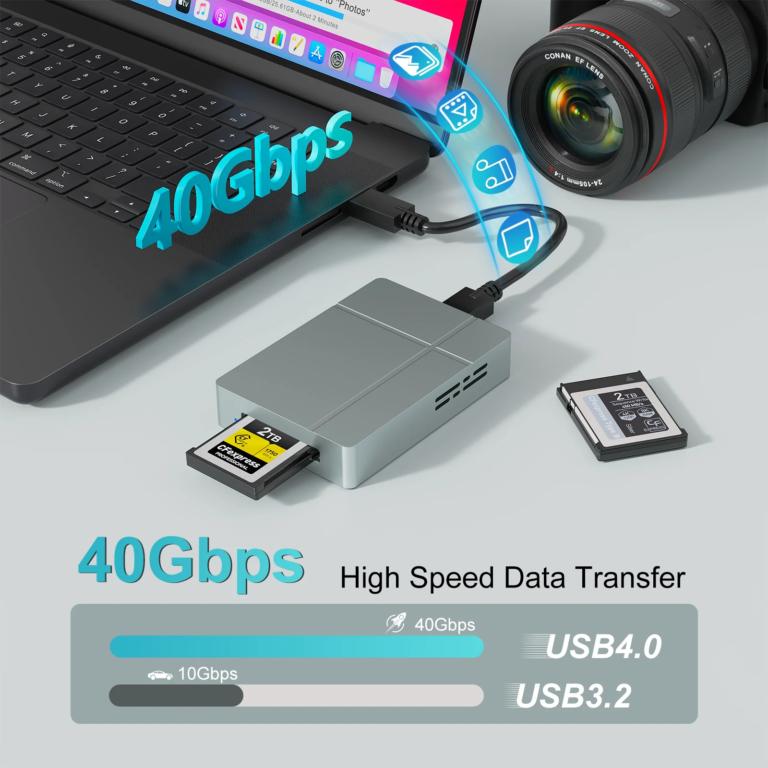

Our client is a well-established brand distributor based in the United States, operating an independent retail website that specializes in high-performance computer accessories. With a focus on catering to professional users (including photographers, video editors, and IT professionals), the client sought a custom high-speed USB4 CFExpress Type B card reader to expand their premium product line. The goal was to launch a reliable, efficient storage accessory that could handle the large-volume data transfer needs of their target audience while maintaining a competitive edge in the U.S. retail market.

After evaluating multiple global suppliers, the client selected Rocketek for our expertise in USB4 interface technology and our ability to deliver tailored solutions that align with U.S. market quality standards.

The Challenge

Following the initial sample testing, the client identified two critical issues that needed to be resolved before mass production could proceed:

1. Overheating during high-load operation: During prolonged use (e.g., transferring 4K video files for 30+ minutes), the sample card reader exhibited significant heat accumulation, with surface temperatures exceeding 55°C. This not only raised concerns about user safety but also risked reducing the lifespan of internal components. The client required the final product to maintain a surface temperature below 40°C even under continuous high-speed data transfer loads—a strict standard to ensure user comfort and product durability.
2. Mismatched operating modes: The client’s target users required specific operating mode settings (including auto-sleep, hot-swappable compatibility, and data transfer priority adjustment) to streamline their workflow. The initial sample’s operating logic did not align with these requirements, failing to meet the usability expectations of professional users.

Additionally, the client had a tight product launch timeline, demanding rapid iterations and a quick resolution to these issues to avoid missing the peak retail season.

Our Solution

Rocketek assembled a dedicated cross-functional team (including R&D engineers, thermal design specialists, and product managers) to address the challenges. We adopted a “precision optimization” approach to ensure solutions were effective without compromising product functionality or increasing costs unnecessarily:

1. Targeted Thermal Design Optimization for Heat Dissipation

Instead of a full redesign, we implemented a three-pronged thermal solution based on heat conduction and convection principles:

– Integrated micro-fan cooling system: We redesigned the product housing (retooling the mold to maintain the original compact form factor) and integrated a high-efficiency, low-noise micro-fan. The fan was strategically positioned to align with the heat-generating components (USB4 controller chip and card slot interface) to facilitate targeted heat extraction.

– Thermal conductive material enhancement: We applied high-performance thermal silica gel between the controller chip and the metal housing, improving heat transfer efficiency by 35% compared to the initial sample. The housing itself was retained as anodized aluminum to leverage its excellent thermal conductivity while ensuring corrosion resistance.

– Airflow channel optimization: We added micro-ribbed structures inside the housing to guide airflow, ensuring hot air was efficiently expelled through dedicated vents without creating turbulence or increasing noise. The fan was calibrated to activate automatically when temperatures exceeded 30°C, balancing cooling efficiency with energy savings.

2. PCB Redesign and Operating Mode Debugging

To address the operating mode mismatch, our R&D team worked closely with the client’s product team to refine the PCB design and firmware logic:

– PCB layout optimization: We redesigned the PCB layout to accommodate the new thermal components and adjusted the circuit paths to enhance signal integrity. This included optimizing the power management module to support the client’s required auto-sleep function.

– Firmware customization and debugging: Our engineers developed custom firmware to implement the client’s specific operating modes, including hot-swappable compatibility with multiple card formats (CFexpress, SD, microSD) and data transfer priority settings. We conducted 50+ rounds of iterative testing to ensure stable performance, including compatibility tests with popular U.S. professional software (e.g., Adobe Premiere Pro, Lightroom).

– Rapid prototyping: Leveraging our in-house prototyping lab, we delivered the revised PCB samples within 7 working days, allowing the client to conduct timely verification testing.

The Result

The collaborative and agile approach yielded exceptional results, meeting the client’s requirements and timeline:

1. Thermal performance meets strict standards: The optimized card reader passed the client’s rigorous heat testing, maintaining a surface temperature of 36-39°C during continuous 4K video transfer—well below the 40°C threshold. User experience testing confirmed no discomfort during prolonged use, and component durability tests showed a 20% extension in service life compared to the initial sample.

2. Operating modes fully aligned with needs:The customized firmware and PCB design perfectly matched the client’s required operating logic. Professional user trials confirmed that the auto-sleep, hot-swappable, and data priority functions significantly improved workflow efficiency, exceeding user expectations.

3. Timely launch and market success: The revised samples were approved within the client’s timeline, enabling them to launch the product ahead of the peak retail season. The USB4 card reader quickly gained positive reviews on their retail website, with users praising its “cool operation” and “intuitive functionality.”

4. Long-term partnership established: Impressed by Rocketek’s technical expertise, rapid response, and commitment to quality, the client has since expanded the collaboration to include additional accessory products, positioning Rocketek as their preferred supplier for high-performance USB interface accessories.
